Ultrasonic Flaw Detection: Unveiling the Power of Sound in Non-Destructive Testing


Introduction:

Non-destructive testing (NDT) techniques play a vital role in ensuring the integrity and safety of structures, materials, and components in various industries. Among the array of NDT methods available, ultrasonic flaw detection stands out as a powerful and versatile technique. In this blog, we will explore the fundamentals of ultrasonic flaw detection, its applications, and the benefits it offers in detecting and characterizing defects without causing damage. Join us as we dive into the world of sound waves and their ability to reveal hidden flaws.

1. Understanding Ultrasonic Flaw Detection:

1.1 The Basics of Ultrasonics: We'll introduce the principles of ultrasonics, explaining how sound waves are generated, propagated, and detected.

1.2 Interaction with Materials: We'll explore how ultrasonic waves interact with different materials, including their reflection, transmission, and absorption behaviors.

2. How Ultrasonic Flaw Detection Works:

2.1 Transducers: We'll discuss the role of transducers in ultrasonic flaw detection, which convert electrical energy into sound waves and vice versa.

2.2 Pulse-Echo Technique: The pulse-echo technique is a fundamental method in ultrasonic flaw detection. We'll explain how it works, including the emission, propagation, and reception of ultrasonic waves.

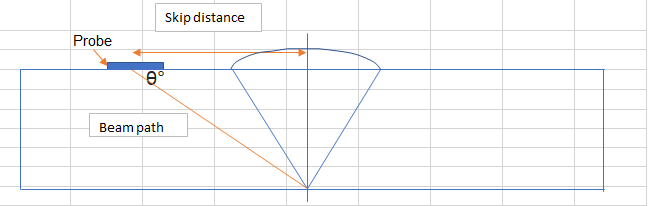

1. Skip distance & Beam path Calculator for Ultrasonic Flaw

     Detection (Ultrasonic Flaw Detection, ASME Sec V)


Formula for Skip distance

1. Half skip Distance = T x Tanθ

2. Full Skip distance =  2 x T x Tanθ

3. 1-1/2 Skip distance =  3 x T x Tanθ


Formula for Beam Path

 1. Half Beam path = T x Secθ

2. Full Beam path =  2 x T x Secθ

3. 1-1/2 Beam path =  3 x T x Secθ

Note:-  θ = Probe angle



Probe used for Ultrasonic testing

Following probes we can use during testing

1. 0° = Normal Beam Probe

2. 45° = Angle Beam Probe

3. 60° = Angle Beam Probe

4. 70° = Angle Beam Probe

3. Applications of Ultrasonic Flaw Detection:

3.1 Weld Inspection: Ultrasonic flaw detection is widely used for weld inspection in various industries, including manufacturing, construction, and oil and gas. We'll delve into the specifics of weld inspection and the types of defects it can identify.

3.2 Material Characterization: Ultrasonics can provide valuable information about material properties, such as thickness measurement, sound velocity determination, and attenuation analysis. We'll explore these applications in detail.

3.3 Defect Detection in Components: Ultrasonic flaw detection is effective in identifying defects in a wide range of components, such as pipes, pressure vessels, and aerospace structures. We'll highlight its importance in ensuring component integrity and safety.

4. Advantages and Limitations of Ultrasonic Flaw Detection:

4.1 Advantages: We'll discuss the key advantages of ultrasonic flaw detection, including its non-destructive nature, high sensitivity, real-time imaging capabilities, and portability.

4.2 Limitations: While ultrasonic flaw detection is a powerful technique, it has certain limitations. We'll examine factors such as material properties, surface conditions, and operator skill that can affect its effectiveness.

5. Recent Advancements and Future Directions:

5.1 Advanced Imaging Techniques: We'll explore the advancements in ultrasonic flaw detection, such as phased array ultrasonics and time-of-flight diffraction, which offer improved imaging capabilities and defect characterization.

5.2 Automation and Data Analysis: The integration of automation and advanced data analysis techniques, such as artificial intelligence and machine learning, is revolutionizing ultrasonic flaw detection. We'll discuss the potential benefits and challenges of these developments.

Conclusion:

Ultrasonic flaw detection has revolutionized the field of non-destructive testing, allowing us to uncover hidden defects and ensure the integrity of critical structures and components. By harnessing the power of sound waves, this technique provides invaluable information about material properties and helps identify flaws in a non-invasive and efficient manner. As technology continues to advance, we can expect further improvements in imaging capabilities, automation, and data analysis, enhancing the accuracy and reliability of ultrasonic flaw detection. With its versatility and wide-ranging applications, ultrasonic flaw detection remains a cornerstone in ensuring safety and quality across numerous industries.
